MaxCut Example

Download Notebook

This notebook demonstrates how to use the Maxcut use case.

import getpass
import os

import matplotlib.pyplot as plt
import numpy as np
from dotenv import load_dotenv
from luna_quantum.algorithms import SCIP

from luna_usecases.maxcut import (
    MaxcutCollection,
    MaxcutData,
    MaxcutFormulation,
    MaxcutInstance,
)

load_dotenv()

if "LUNA_API_KEY" not in os.environ:
    # Prompt securely for the key if not already set
    os.environ["LUNA_API_KEY"] = getpass.getpass("Enter your Luna API key: ")

Create Data

Define the problem data.

maxcut_data = MaxcutData(
    name="maxcut",
    node_names=["A", "B", "C", "D"],
    adjacency_matrix=np.array([[0, 3, 2, 0], [3, 0, 4, 1], [2, 4, 0, 5], [0, 1, 5, 0]]),
    node_position={"A": (0, 0), "B": (1, 0), "C": (1, 1), "D": (0, 1)},
)

print(maxcut_data.to_string())

MaxCut Data:
  Nodes: 4
  Edges: 5

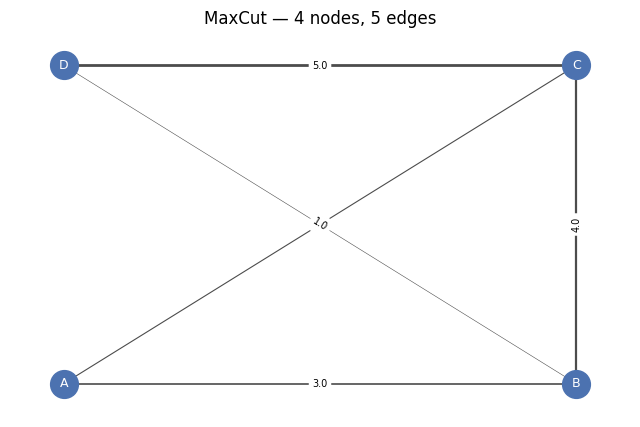

Plot Data

Visualize the graph with nodes and weighted edges.

ax = maxcut_data.plot()
plt.show()

png

Create Formulation

Define the optimization formulation.

formulation = MaxcutFormulation(name="maxcut")
print(formulation.to_string(maxcut_data))

Maximum Cut (MaxCut) Formulation:
  Nodes: 4
  Edges: 5

Decision Variables:
  x[i] in {0,1} for i = 0, ..., 3
  x[i] = 1 if node i is in partition 1, 0 if in partition 0
  Total: 4 binary variables

Objective:
  maximize sum_False w[i,j] * (x[i] + x[j] - 2 * x[i] * x[j])

Constraints:
  None (unconstrained binary optimization)

Create Instance

Combine data and formulation into an instance.

instance = MaxcutInstance(data=maxcut_data, formulation=formulation)
print(instance.to_string())

Data:MaxCut Data:
  Nodes: 4
  Edges: 5
Formulation:Maximum Cut (MaxCut) Formulation:
  Nodes: 4
  Edges: 5

Decision Variables:
  x[i] in {0,1} for i = 0, ..., 3
  x[i] = 1 if node i is in partition 1, 0 if in partition 0
  Total: 4 binary variables

Objective:
  maximize sum_False w[i,j] * (x[i] + x[j] - 2 * x[i] * x[j])

Constraints:
  None (unconstrained binary optimization)

Formulate Model

Create the quantum optimization model.

model = instance.formulate()
model

Model(name=maxcut<maxcut>, sense=Maximize, objective=-6 x_A x_B - 4 x_A x_C - 8 x_B x_C - 2 x_B x_D - 10 x_C x_D + 5 x_A + 8 x_B + 11 x_C + 6 x_D, constraints={})

Solve and Interpret

Solve the model and interpret the solution.

job = SCIP().run(model)
sol = job.result()
mc_sol = instance.interpret(sol)
print(mc_sol.to_string())

/Users/maximilianjanetschek/PycharmProjects/luna-usecases/.venv/lib/python3.13/site-packages/rich/live.py:260:
UserWarning: install "ipywidgets" for Jupyter support
  warnings.warn('install "ipywidgets" for Jupyter support')













MaxCut Solution:
  Cut Value: 12.0
  Valid: True
  Partition 0: ['A', 'C']
  Partition 1: ['B', 'D']

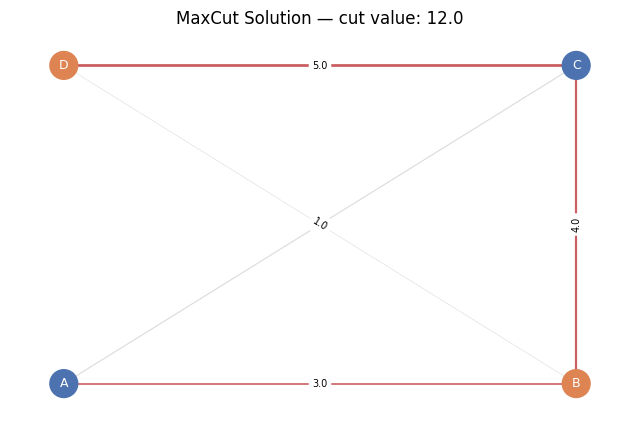

Plot Solution


Visualize the optimal partition with cut and non-cut edges.


ax = mc_sol.plot(maxcut_data)
plt.show()



png


Model Collections


Generate collections of MaxCut instances using random graphs.


Erdős-Rényi Random Graphs


Generate MaxCut instances using the Erdős-Rényi random graph model with configurable density.


# Generate random Erdős-Rényi graphs with varying density
erdos_renyi_collection = MaxcutCollection.from_random_erdos_renyi(
    min_num_nodes=4,
    max_num_nodes=8,
    min_density=0.3,
    max_density=0.7,
    num_instances=2,
    weighted=True,
    seed=42,
)

print(f"Collection: {erdos_renyi_collection.name}")
print(f"Description: {erdos_renyi_collection.description}")
print(f"Number of instances: {len(erdos_renyi_collection.instances)}")



Collection: Erdős-Rényi MaxCut Set 4-8 nodes
Description: MaxCut instances from Erdős-Rényi random graphs with density range [0.30, 0.70], weighted edges
Number of instances: 10



# Formulate models from the collection
for i, inst in enumerate(erdos_renyi_collection.instances[:3]):
    m = inst.formulate()
    print(f"Instance {i}: {m.name}")



Instance 0: maxcut<maxcut>
Instance 1: maxcut<maxcut>
Instance 2: maxcut<maxcut>



Random Regular Graphs


Generate MaxCut instances using random regular graphs where each node has the same degree.


# Generate random 3-regular graphs (each node has degree 3)
regular_collection = MaxcutCollection.from_random_regular(
    min_num_nodes=6,
    max_num_nodes=10,
    degree=3,
    num_instances=2,
    weighted=True,
    seed=42,
)

print(f"Collection: {regular_collection.name}")
print(f"Description: {regular_collection.description}")
print(f"Number of instances: {len(regular_collection.instances)}")



Collection: 3-Regular MaxCut Set 6-10 nodes
Description: MaxCut instances from 3-regular random graphs, weighted edges
Number of instances: 6



Complete Graphs


Generate MaxCut instances using complete graphs (maximum density - all nodes connected).


# Generate complete graphs (K_n)
complete_collection = MaxcutCollection.from_complete_graph(
    min_num_nodes=4,
    max_num_nodes=7,
    weighted=True,
    seed=42,
)

print(f"Collection: {complete_collection.name}")
print(f"Description: {complete_collection.description}")
print(f"Number of instances: {len(complete_collection.instances)}")

# Example: formulate one model
example_model = complete_collection.instances[0].formulate()
print(f"\nExample model: {example_model.name}")



Collection: Complete Graph MaxCut Set K4-K7
Description: MaxCut instances from complete graphs, weighted edges
Number of instances: 4

Example model: maxcut<maxcut>
